Cloud provider guides

Care can be deployed on a range of cloud providers, with different deployment options depending on your scale, budget, and operational preferences. This section collects provider-specific recipes that walk you through standing up a production-ready Care environment step by step.

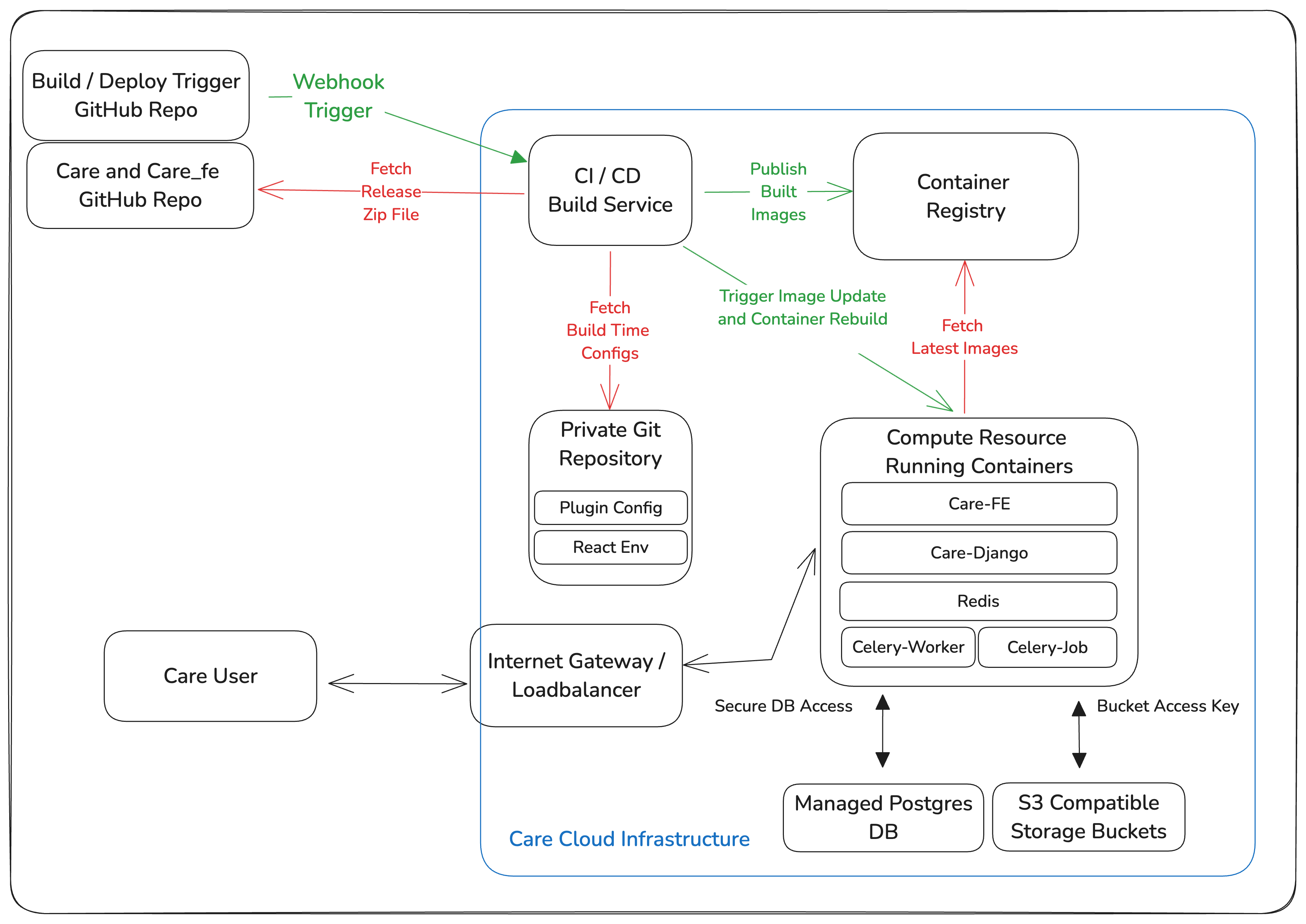

Before picking a provider, it helps to understand the infrastructure Care expects in production. The diagram below shows the core components of a production deployment.

Infrastructure requirements

The following components are essential for a production deployment.

1. Compute resources

   • High-availability Kubernetes cluster (if using container orchestration):
     • Multi-master setup for fault tolerance and high availability across multiple availability zones.
     • Worker nodes distributed across geographic locations for improved resilience and reduced latency.
     • Custom Horizontal Pod Autoscalers (HPAs) based on CPU, memory, and custom application metrics.
     • Cluster Autoscaler for dynamic adjustment of worker nodes based on workload demand.
     • Support for Custom Resource Definitions (CRDs) for extended functionality and third-party integrations.
     • Fine-grained Role-Based Access Control (RBAC) policies for proper access management and security.
     • Strict security policies, including PodSecurityPolicies and Network Policies, to enforce container isolation.
     • Advanced ingress controllers with header rewriting, path-based routing, and SSL termination for secure client connections.
   • Virtual Private Server (VPS) options (AWS EC2, GCP Compute Engine, DigitalOcean Droplet, and similar):
     • Customizable virtual machines with dedicated resources.
     • A standard Linux distribution (x86 or ARM) such as Ubuntu or Debian, with Docker installed for containerization.
     • Backup and snapshot capabilities for disaster recovery and point-in-time restoration.
   • Platform as a Service (PaaS) options (DigitalOcean App Platform, Heroku, and similar):
     • Simplified deployment workflows with built-in horizontal scaling to handle increased traffic.
     • Integrated monitoring and logging for tracking performance and troubleshooting.
     • Support for Python/Django and npm workloads alongside container images for flexible deployment.
     • Environment variables and configuration management for application settings without code changes.
     • Secure by default, with options for custom domains and SSL certificates for encrypted communication.

2. Database infrastructure

   • Highly available PostgreSQL cluster with multiple read replicas for scalability and fault tolerance across regions.
   • Support for data partitioning and sharding to distribute database load across nodes.
   • Encryption of data at rest and in transit using robust key management for regulatory compliance.
   • Automated backups for data consistency and reliability, with point-in-time recovery.
   • Automated failover to minimize downtime during node failures or maintenance windows.
   • Regular maintenance jobs (vacuuming, index rebuilding, statistics updates) for optimal performance.
   • Monitoring to ensure consistency across replicas and detect replication lag.
   • Procedures for version upgrades with minimal downtime using blue-green strategies.
   • Auto-scaling policies for dynamic resource adjustment based on query volume and load patterns.

3. Storage solutions

   • Highly available, scalable object storage with S3 API compatibility for universal access.
   • Comprehensive data lifecycle management, including versioning, retention, and automatic deletion for cost optimization.
   • Encryption for all stored objects, both at rest and in transit, to meet compliance requirements.
   • Granular access controls using bucket policies, IAM roles, and access keys to prevent unauthorized access.

4. Network security

   • Security groups for external communication with fine-grained rules for incoming and outgoing traffic.
   • Firewall rules for managing traffic between application tiers.
   • DDoS protection to safeguard against distributed denial-of-service attacks and ensure availability.
   • Secure VPN service for reliable access to SSH and Kubernetes control planes with multi-factor authentication.
   • Virtual Private Cloud (VPC) capabilities for isolated network environments with private subnets for sensitive components.

5. Email infrastructure

   • Dedicated SMTP server to handle email traffic for the domain the cloud services run on.
   • Proper email authentication (SPF, DKIM, and DMARC) to prevent spoofing.
   • TLS encryption to protect email data in transit.
   • Detailed logging and alerting for email traffic and server health to monitor delivery rates and detect issues.

6. CI/CD pipeline

   • Image builds from release files with automated testing and validation.
   • Automated deployment of images to the Kubernetes cluster with rollback capabilities.
   • A highly available private container registry with build pipeline integration and vulnerability scanning.
   • A private Git repository for infrastructure templates and configuration files, with access controls and audit logging.

Getting started

1. Select a cloud provider from the guides below.
2. Follow the provider-specific deployment guide.
3. Deploy and configure Care according to the infrastructure requirements above.

Available cloud providers

Cloud provider	Deployment guide	Available options
AWS	Deploy on AWS	ECS Fargate
Google Cloud	Deploy on Google Cloud	GKE, GCS
DigitalOcean	Deploy on DigitalOcean	App Platform

tip

If you want a portable, self-managed setup that is not tied to a single provider, see the Kubernetes reference deployment for an architecture you can run on any conformant cluster.
